Washers
DIN 127-B
The DIN 127-B spring lock washer is an elastic fastener designed to prevent fasteners from loosening due to vibrations or dynamic loads. Its split design allows it to exert constant pressure on the surface, improving clamping security. Manufactured in accordance with DIN standards, it ensures compatibility with metric fasteners. Available in steel and stainless steel, with finishes such as zinc plating, it offers protection against corrosion and reliable performance in mechanical and assembly applications.

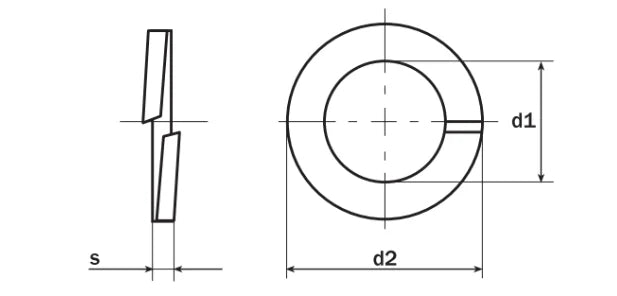

Product dimensions
| d nom. | d1 (min) | d2 (max) | s |
|---|---|---|---|
| M3 | 3,1 | 6,2 | 0,8 |
| M4 | 4,1 | 7,6 | 0,9 |
| M5 | 5,1 | 9,2 | 1,2 |
| M6 | 6,1 | 11,8 | 1,6 |
| M7 | 7,1 | 12,8 | 1,6 |
| M8 | 8,1 | 14,8 | 2 |
| M10 | 10,2 | 18,1 | 2,2 |
| M12 | 12,2 | 21,1 | 2,5 |
| M14 | 14,2 | 24,1 | 3 |
| M16 | 16,2 | 27,4 | 3,5 |
| M18 | 18,2 | 29,4 | 3,5 |
| M20 | 20,2 | 33,6 | 4 |
| M22 | 22,5 | 35,9 | 4 |
| M24 | 24,5 | 40 | 5 |
| M27 | 27,5 | 43 | 5 |
| M30 | 30,5 | 48,2 | 6 |
| M36 | 36,5 | 58,2 | 6 |
| M39 | 39,5 | 61,2 | 6 |
| M42 | 42,5 | 68,2 | 7 |
| M45 | 45,5 | 71,2 | 7 |
| M48 | 49 | 75 | 7 |
| M52 | 53 | 83 | 8 |
Grades
